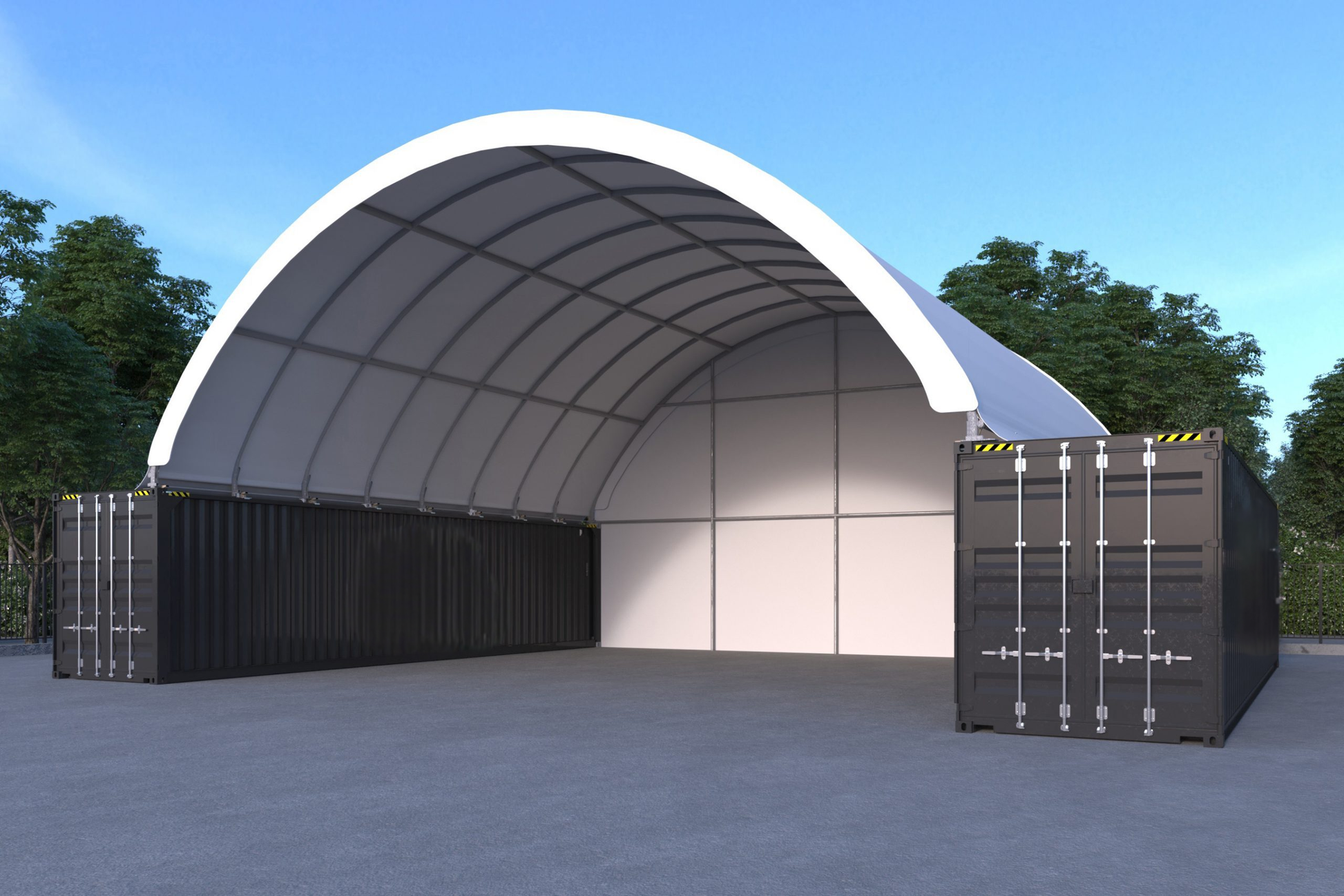

40ftx40ft (12mx12m) Shipping Container Dome Shelter w/ Back Wall

This commercial-grade dome shelter provides a big, sheltered, weather-resistant space—ideal for storage, workshops, and just about anything you can think of. It’s tough, simple to set up (no welding required), and built to last, with the added benefit that you can move and reuse it when and wherever you need.

If you need a large, hassle-free cover that you can assemble yourself and rely on for years, this shelter will do the job.

The 12×12 metre (40x40ft) Dome Shelter is a strong, weatherproof shelter with 144 m² of undercover space. There are no internal support posts, therefore the entire space is useable and safe for all kinds of activities. It’s durable enough for commercial use but easy for anyone with handyman skills to understand, assemble, and relocate as needed.

Key features and specifications:

• Incorporates a 9-arch framework using 76mm diameter Circular Hollow Section (CHS) steel tubing, engineered for optimal strength-to-weight performance.
• Features 56 steel purlins of 60mm diameter, securely linking each arch for enhanced structural cohesion and stability.
• Integrates 16 cross-bracing tubes, each 46mm in diameter, to reinforce lateral stability and structural rigidity.
• Utilises 28 tensioning ratchets to secure and bond the front and rear arches together with the roof cover, maintaining uniform tension across the structure.
• Includes 18 galvanised ratchets, evenly spaced along the structure’s length, to firmly anchor the roof cover and prevent slippage under load.
• Employs 4 dedicated hook ratchets to provide precise tensioning at cover overlaps on the front and rear arches, eliminating weak points.
• Manufactured from hot-dip galvanized steel throughout for superior corrosion resistance and extended service life.
• Designed with a Quick-Mount ‘no weld’ assembly system, ensuring rapid installation and minimising on-site construction complexity.
• Equipped with a sectional Rectangular Hollow Section (RHS) galvanized steel base rail, featuring adjustable clamps for robust anchorage to shipping containers, post sets, brick walls, and other foundational elements.
• A 12m wide and 7.1m high (on General Purpose container. 7.4m on a High Cube) end wall is also included. The solid steel CHS tube frame is easy to assemble (no welding) and creates another layer of privacy and security.

Shelter Span
The shelter spans 40ft or 12m between two 40ft shipping containers and connects onto the roof. Different combinations are possible, such as a single post set with a shipping container on the other side or a double row post set.

Key Features

• Weatherproof and Corrosion-resistant Materials:
  The frame is made of strong hot-dip galvanised steel, and the cover is constructed from heavy-duty multi-layer PVC, providing excellent protection from wind, sun, and rain.
• Quick-Mount Design:
  Uses a “Quick-Mount” base rail system so no welding is required—just simple tools, bolts and clamps. No special skills needed to build the base rail system and arch frame. Simply twist and lock the corner base plates onto each container, assemble the main frame.

Step-by-Step Assembly Process

1. Attach the Base Plates and Rails:
   Twist and lock the foot plates into the top corner blocks of the containers. Assemble the base rails. Secure the base rails to the container using specially engineered C-clamps and bolts.
2. Build the Frame:
   Assemble arch sections to form a single arch truss.  Install the arches into the truss tube sleeves on the base rails. Connect the arches with Purlin tubes. Brace the front and rear end of the frame with cross-bracing tubes.
3. Add the End Wall:
   Set up and install the end wall tube frame and PVC cover for extra protection.
4. Install the Cover:
   Install the PVC cover over the frame and tie it down with a combination of steel tension tubes ratchets and straps for a snug, weatherproof fit.

Roof Cover Material:

• 610GSM commercial-grade PVC fabric
• UV and fire-resistant properties
• Waterproof with acrylic surface treatment for longevity

Dimensions and Capacity:

• Width: 12m (40ft)
• Length: 12m (40ft)
• Dome height above container: 4.5m
• Full height: 7.1m (based on General Purpose container)
• Full height: 7.4m (based on High Cube container)
• Total undercover area: 144m²

Installation and Portability:

• Designed to sit on 40ft shipping containers.
• Can be used with a free-standing, single or double row post-set and eaves rail kit.
• 12m (40ft) wide at the front for easy access. Front wall with pull-up door available.
• C-Clamps secure the base rail to the container top rail.
• Can be dismantled and rebuilt without compromising structural integrity.

Engineering Highlights:

• Engineered to Australian Standards
• Wind Load Resistance: Engineered (location dependent) to withstand wind speeds up to 180 km/h (112 mph), meeting AS/NZS 1170.2 standards for wind actions.

Back Panel Dimensions

Note: Images are for illustrative purposes. Your shelter dome kit may not contain the same pieces featured in the images, however, we do guarantee that the dome shelter will still function and be assembled as advertised.
