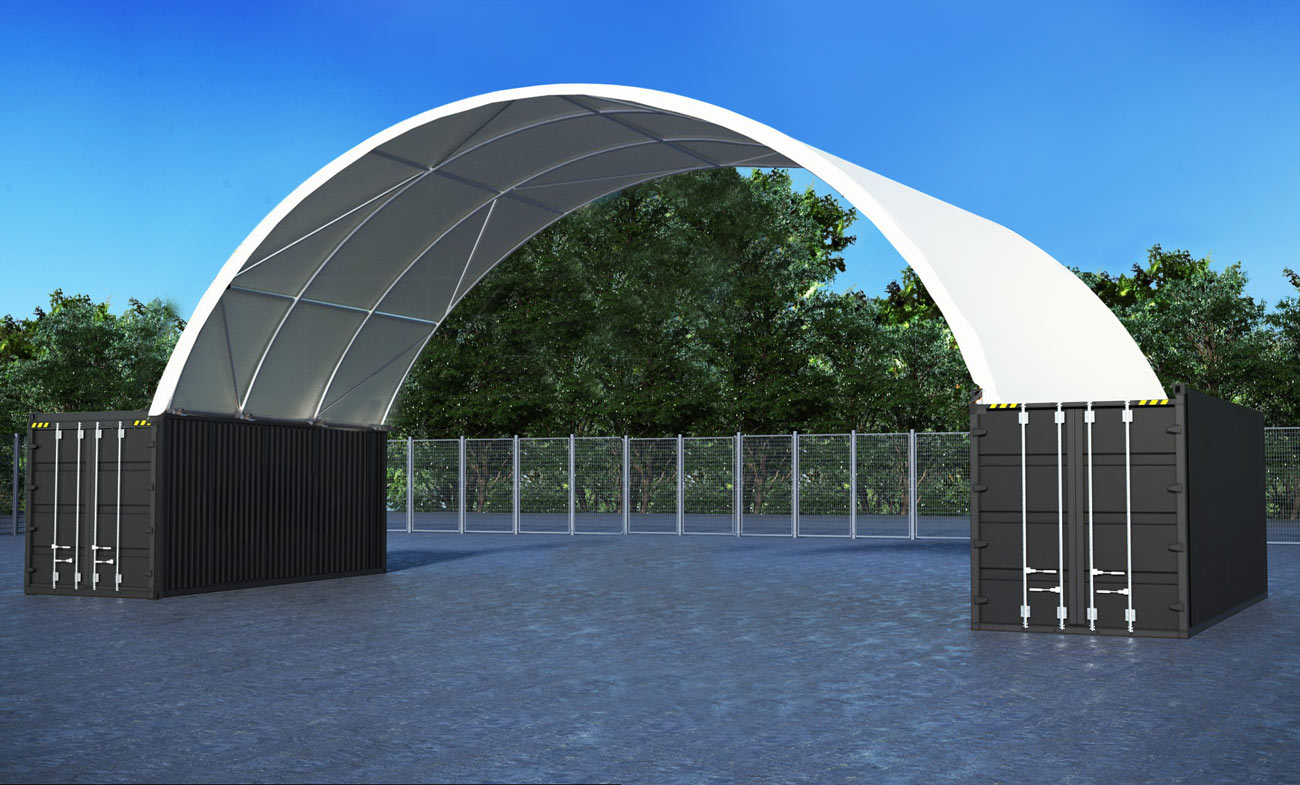

40ftx20ft (12mx6m) Shipping Container Dome Shelter

This 12m x 6m single roof truss design features the Quick-Mount anchoring system. Designed for 20ft/6m long shipping containers, the entire shelter structure can be fitted to General Purpose (GP) and High Cubes (HC or HQ) containers.

Protect your equipment, materials and essential tools from the damaging effects of wind, heat, rain, sun and UV damage.

The 40x20ft (12x6m) Dome Shelter is a new addition to the range of the Quality Domes Direct Shipping Container Shelters. Attached to 2 x 20ft containers (no welding design), this expansive, semi-permanent structure provides 72m² of undercover weatherproof space.

With a solid galvanised, steel tube truss design, it is engineered to withstand harsh environmental conditions, offering superior protection against searing heat, rain, wind, dust, frost, and even snow (in NSW, ACT, VIC and TAS).

Key features and specifications:

• Hot-dip galvanized steel frame for corrosion resistance and long-term durability
• Utilises a robust, single 4 truss/arch design for optimal strength-to-weight ratio
• 21 frame Purlins and additional and 16 cross-bracing tubes for added rigidity
• ‘no weld’ design for fast assembly and disassembly if required
• Roof truss base rail connection spans the entire 6m length of the container, enhancing stability
• Can be mounted on post sets with eaves rails, or direct onto a wall or concrete foundation

Roof Cover Material:

• 610GSM commercial-grade PVC fabric
• UV, tear resistant and fire-resistant properties
• Waterproof with acrylic surface treatment for longevity

Dimensions and Capacity:

• Shelter Width: 12m (40ft)
• Shelter Length: 6m (20ft)
• Roof height: 4.5m (from top of container)
• Floor to ceiling height clearance 7.1m (GP Container)
• Total floor area: 72m²

Features:

• Designed to fit 20ft shipping containers
• 12m (40ft) openings at front and back for easy access
• Quick-Mount locking plates for fast assembly

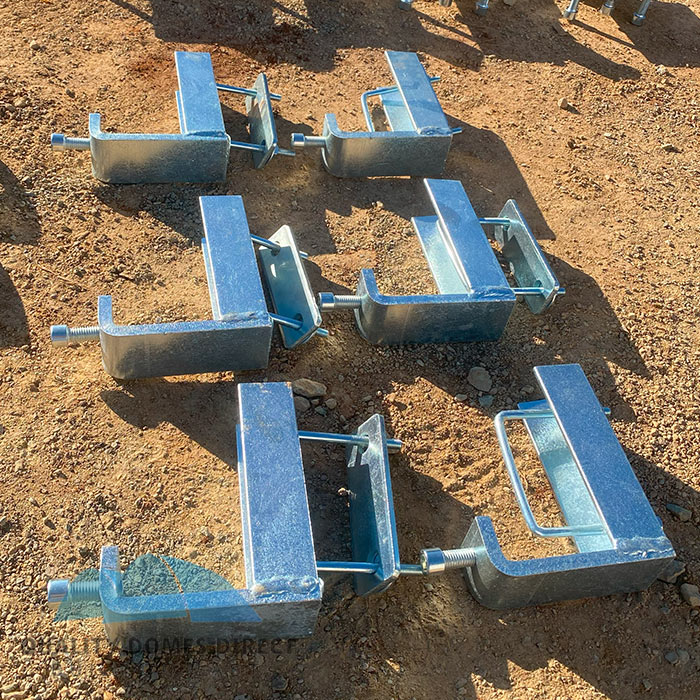

• RHS tube base rails with C-shape locking clamps secure the base rail to the container’s top rail
• Can be dismantled and rebuilt without compromising structural integrity

Engineering Highlights:

• Engineered to Australian Standards
• Wind Load Resistance: Engineered to withstand wind speeds up to 180 km/h (112 mph), meeting AS/NZS 1170.2 standards for wind actions.

Quick-Mount Assembly

• No-Weld Design: Features a unique, stacking hole twist-lock mechanism incorporating a solid steel swivel foot locking the corners of the shelter into position whilst wnhancing structural rigidity
• Load Distribution: Engineered to minimise stress concentrations along the base rail system and evenly distribute forces at connection points
• Tolerance Management: Incorporates precision-engineered components with tight tolerances for optimal fit and performance

Warranty and Durability:

• 10-Year Warranty on the steel structure
• 10-Year Warranty on the PVC fabric cover

Sustainability Features:

• Recyclability: Over 95% of the structure’s materials are recyclable at end-of-life
• Energy Performance: High-reflectivity PVC cover reduces solar heat gain, potentially lowering cooling costs

The 40x20ft Dome Shelter is a premier solution for portable, high-capacity, affordable storage solution. Engineered for durability and ease of assembly, this shelter is tailored for industrial and commercial applications that require robust, weather-resistant structures in demanding environments.

With its Quick-Mount anchoring system and compatibility with General Purpose (GP) and High Cube (HC) shipping containers, post sets and block wall foundations, the shelter can be easily built, dismantled, relocated, and reassembled to adapt to evolving operational needs.

This versatility, combined with a 10-year warranty on both the steel structure and heavy-duty PVC roof cover, ensures long-lasting protection for equipment and materials against various weather conditions, including heat, rain, wind, and UV exposure.

Shelter Dimensions

Packing Crate Dimensions and Weight

L (m)W (m)H (Top of container to apex)H weight2.4m0.75m0.72m650kg

• Protect Valuable Assets: Shield machinery, equipment, and materials from rain, sun, wind, and extreme weather conditions, extending their lifespan and reducing maintenance needs.
• Ensure Uninterrupted Work: Our dome shelters provide a covered, weatherproof area so your operations can continue smoothly, regardless of adverse weather.
• Ideal for On-site Operations: Create a dedicated space for repairs, maintenance, or assembly, ensuring tasks can be performed without weather delays.
• Reduce Weather-related Delays: Keep your projects on schedule and within budget by minimizing downtime caused by unpredictable weather conditions.
• Cost-effective and Durable: Invest in a solution that offers quick installation, over a decade of durability, and peace of mind, allowing you to focus on your core business activities without weather worries.

Note: Images are for illustrative purposes. Your shelter dome kit may not contain the same pieces featured in the images, however, we do guarantee that the dome shelter will still function and be assembled as advertised.
