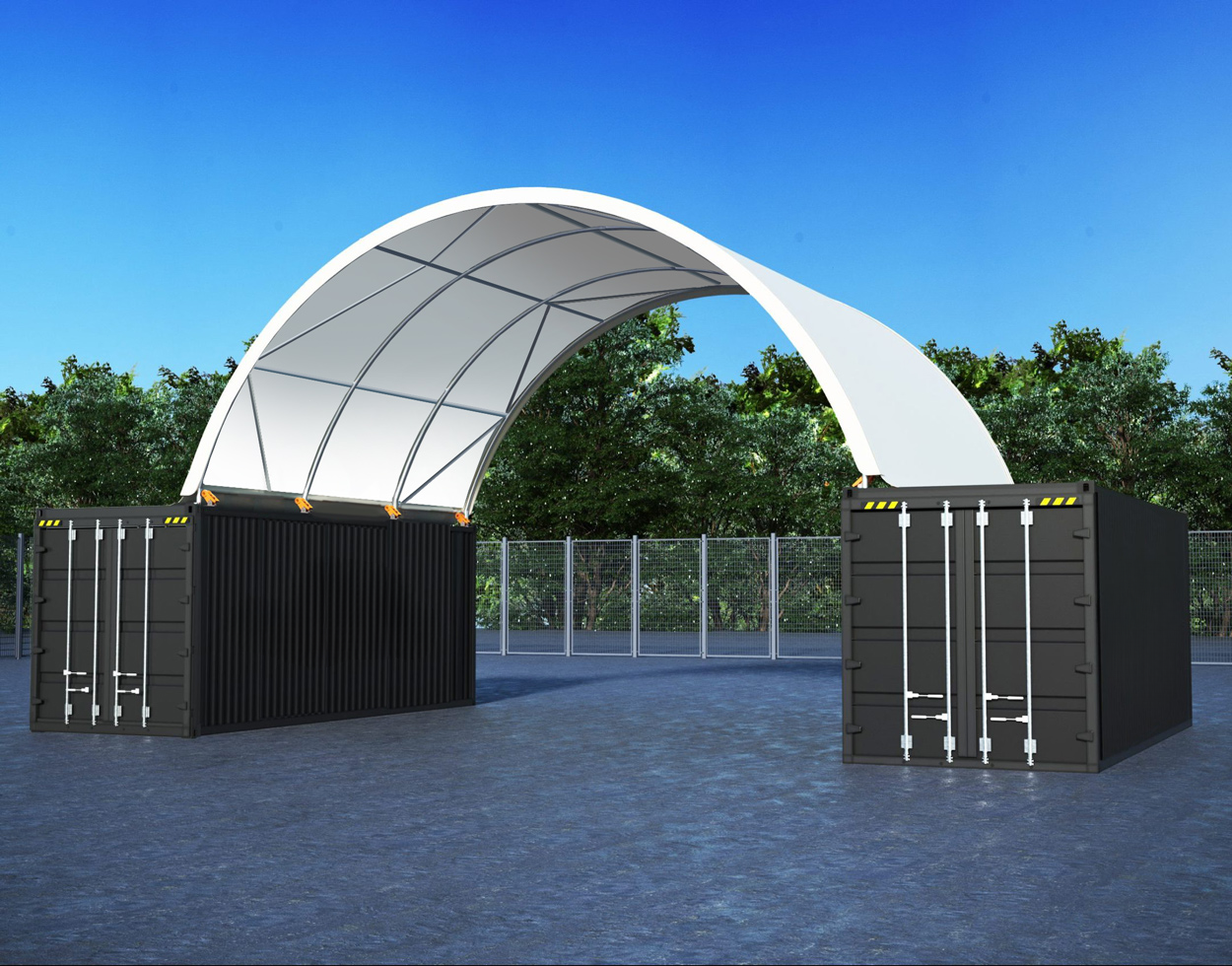

33ftx20ft (10mx6m) Shipping Container Dome Shelter

Note: No welding required. Base plate, rails and trusses are bolted.

Create a 60m2 semi-permanent undercover storage space with this 33x20ft(10x6m) Commercial Grade Dome Shelter. This dome shelter adds another layer of protection for your on-site tools, machinery, equipment, merchandise etc. Front walls with door, interior walls with door and back walls are also available, making this shelter the perfect secure space for any work site or for private use.

Like all our No-Weld dome shelters, this dome is designed for easy no-weld installation. You get the benefits of a permanent structure with the simplicity of a kit.

At 10m x 6m (12 foot container mounted) has front and rear access to allow large machinery, trucks and ancillary equipment to easily pass through allowing delivery and forklift access for load and unloading operations.

Key Features of These Dome Shelters

• Arch-Shaped Roof Frame: The curved design is inherently strong, effectively distributing heavy wind loads. This creates a spacious, open interior free from support columns and reduces maintenance by preventing water and debris buildup.
• Galvanized Tube Sections: The steel tubes are coated with a protective layer of zinc, which prevents rust and corrosion. This makes the frame durable and long-lasting in harsh weather, while the tubular design provides a high strength-to-weight ratio for ease of assembly .

It also features our popular ‘no weld’ design, where a simple twist firmly locks the outside truss base plates into position on top of the four corners. A base rail/bearer is assembled and clamped to the top inside inside edge of the containers, forming a strong foundation to anchor the roof trusses. This shelter can also be mounted on post sets, concrete walls or combinations of shipping containers, posts and walls.

No special tools or equipment is required. Every component is bolted together, making it easy and straightforward without the extra expense of welding.

Imagine having a shelter that effortlessly adapts with your changing needs. That’s exactly what this 33x20ft container dome shelter is designed for.

You get a solid corrosion resistant, hot-dip galvanised steel frame with a UV stabilised PVC roof cover composed of Fire Retardant PVC and is also mold and rip resistant. Create a secure protected environment away from harsh weather and relentless UV exposure.

The custom-made, heavy-duty 610GSM PVC roof fabric (complete with a 10-Year Warranty) shields your assets with unwavering protection from the elements – year in, year out. You can trust this shelter to stand strong, ensuring the safety and integrity of everything stored beneath.

Key features and specifications:

• Hot-dip galvanized steel frame for corrosion resistance and long-term durability
• Made from a robust single 4 arch design for optimal strength-to-weight ratio
• 15 frame Purlins and 12 cross-bracing tubes for extra rigidity
• 'no weld’ design for fast assembly and disassembly if required
• Roof truss base rail connection spans the entire 6m length of the container, enhancing stability
• All necessary hardware for assembly is included – no need to buy anything extra
• Can be mounted on post sets with eaves rails, or direct onto a wall or concrete foundation. Any configuration is possible

Roof Cover Material:

• 610GSM commercial-grade PVC fabric
• UV, tear resistant and fire-resistant properties
• Waterproof with acrylic surface treatment for longevity

Dimensions and Capacity:

• Shelter Width: 10m (33ft)
• Shelter Length: 6m (20ft)
• Roof height: 3.6m (from top of container)
• Floor to ceiling height clearance 6.2m (GP Container)
• Total floor area: 60m²

Features:

• Designed to fit 20ft shipping containers
• 10m (33ft) opening at front and back for easy access
• Quick-Mount locking plates for fast assembly

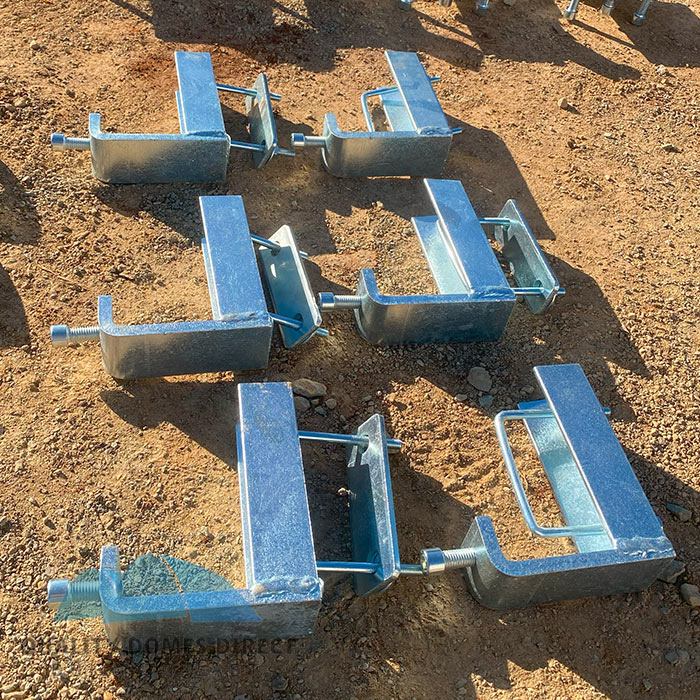

• RHS tube base rails with C-shape locking clamps secure the base rail to the container’s top rail
• Can be dismantled and rebuilt without compromising structural integrity

Engineering Highlights:

Together, the combination of the steel tube frame purlins and cross-bracing tubes create a robust and resilient steel frame. The dome shelter’s curved roof frame is incredibly strong because it’s built to handle forces in a unique way. Instead of the force being concentrated on one small area, the arch/dome shape distributes the weight and pressure from top-down and side loads, such as strong winds. The 15 purlins handle the vertical roof loads, while the 12 cross-bracing tubes manage the horizontal forces. This combination ensures that the structure is strong in all directions, capable of withstanding both the weight from above and the forces from the sides (wind).

• Engineered to Australian Standards
• Wind Load Resistance: Engineered to withstand wind speeds up to 180 km/h (112 mph), meeting AS/NZS 1170.2 standards for wind actions.

Quick-Mount Assembly

Warranty and Durability:

• 10-Year Warranty on the structure
• 10-Year Warranty on the PVC fabric cover

Sustainability Features

• Recyclability: Over 95% of the structure’s materials are recyclable at end-of-life.
• Energy Performance: High-reflectivity PVC cover reduces solar heat gain, potentially lowering cooling costs.

Shelter Dimensions

Shelter Weight and Packing Crate Dimensions

Note: Images are for illustrative purposes. Your shelter dome kit may not contain the same pieces featured in the images, however, we do guarantee that the dome shelter will still function and be assembled as advertised.
