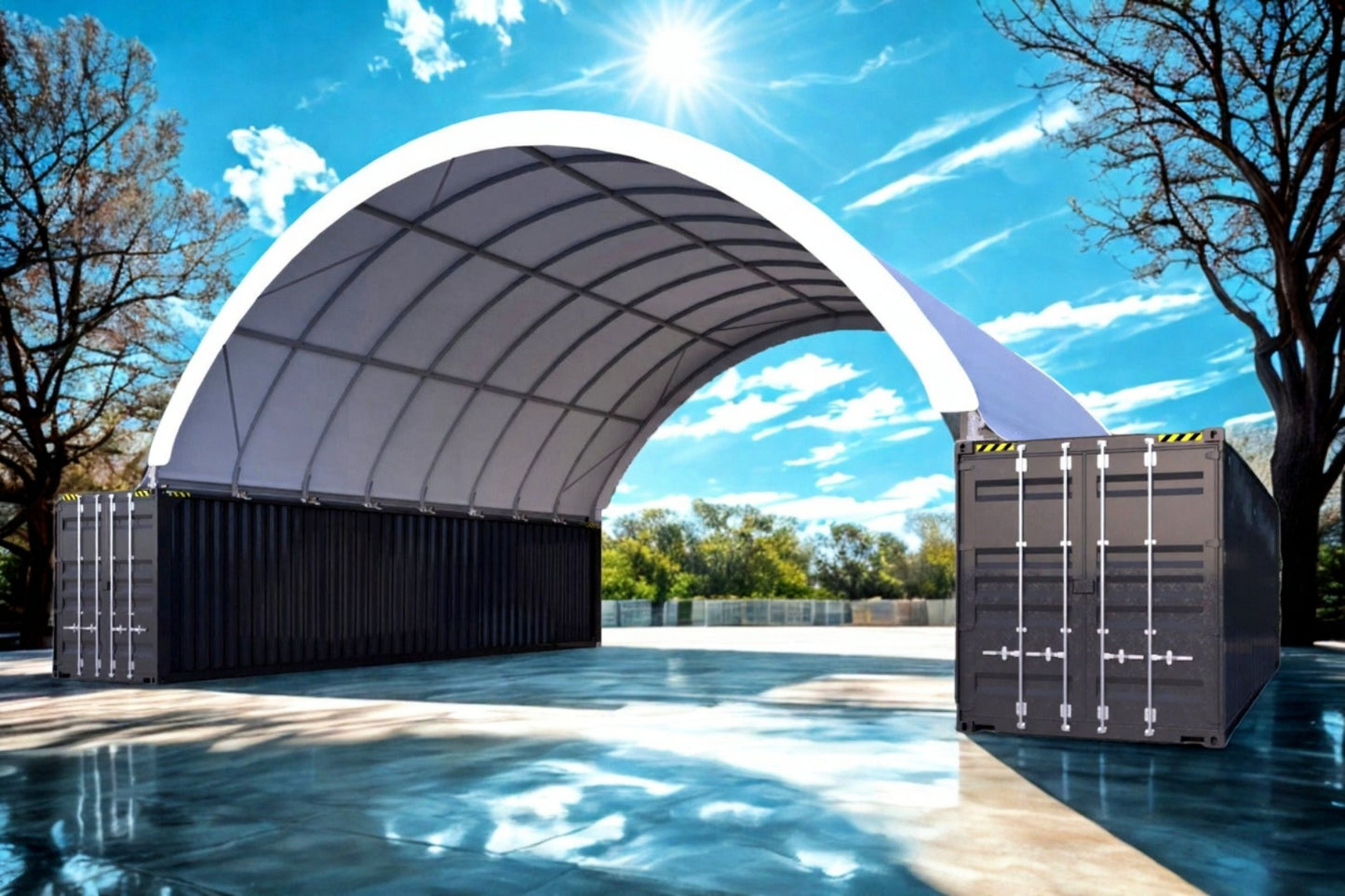

40ftx40ft (12mx12m) Shipping Container Dome Shelter

The new 40x40ft (12x12m) Quick-Mount Commercial Grade Dome Shelter now features 9 arches with 56 purlins connecting the structure together to form a solid structure. Enhancing the stability of the frame are 16 cross-bracing tubes situated between the first and last 2 arches.

This ultra-portable and semi-permanent structure is designed to provide a total of 144m² of under cover weatherproof space. This reliable shelter is engineered to withstand harsh environmental conditions, offering superior protection for business-critical machinery and materials against wind, rain, cold, dust, frost, and even snow.

Key features and specifications:

• Incorporates a 9-arch framework using 76mm diameter Circular Hollow Section (CHS) steel tubing, engineered for optimal strength-to-weight performance.
• Features 56 steel purlins of 60mm diameter, securely linking each arch for enhanced structural cohesion and stability.
• Integrates 16 cross-bracing tubes, each 46mm in diameter, to reinforce lateral stability and structural rigidity.
• Utilises 28 tensioning ratchets to secure and bond the front and rear arches together with the roof cover, maintaining uniform tension across the structure.
• Includes 18 galvanised ratchets, evenly spaced along the structure’s length, to firmly anchor the roof cover and prevent slippage under load.
• Employs 4 dedicated hook ratchets to provide precise tensioning at cover overlaps on the front and rear arches, eliminating weak points.
• Manufactured from hot-dip galvanized steel throughout for superior corrosion resistance and extended service life.
• Designed with a Quick-Mount ‘no weld’ assembly system, ensuring rapid installation and minimising on-site construction complexity.
• Equipped with a sectional Rectangular Hollow Section (RHS) galvanized steel base rail, featuring adjustable clamps for robust anchorage to shipping containers, post sets, brick walls, and other foundational elements.

Roof Cover Material:

• 610GSM commercial-grade PVC fabric
• UV and fire-resistant properties
• Waterproof with acrylic surface treatment for longevity

Dimensions and Capacity:

• Width: 12m (40ft)
• Length: 12m (40ft)
• Height above container: 4.5m
• Full height: 7.1m (based on General Purpose container)
• Full height: 7.4m (based on High Cube container)
• Total undercover area: 144m²

Installation and Portability:

• Designed to sit on 40ft shipping containers
• 12m (40ft) openings at front and rear for easy access. Front wall with pull-up door  and solid framed  End Wall available.
• C-Clamps secure the base rail to the container’s top edge
• Can be dismantled and rebuilt without compromising structural integrity

Engineering Highlights:

• Engineered to Australian Standards
• Wind Load Resistance: Engineered to withstand wind speeds up to 180 km/h (112 mph), meeting AS/NZS 1170.2 standards for wind actions

Note: Images are for illustrative purposes. Your shelter dome kit may not contain the same pieces featured in the images, however, we do guarantee that the dome shelter will still function and be assembled as advertised.
