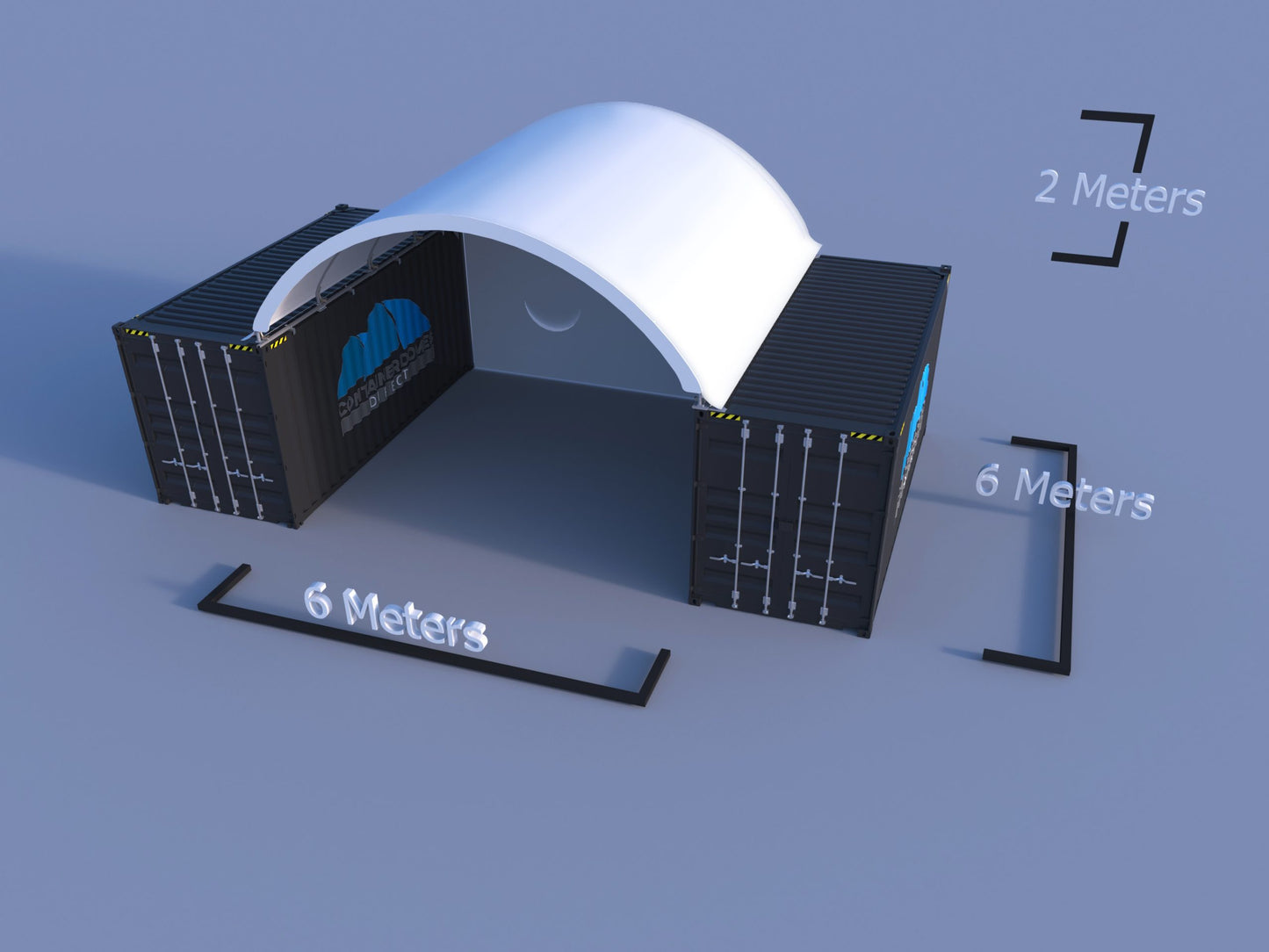

20ftx20ft (6mx6m) Shipping Container Dome Shelter w/ Semi-Permanent End-Wall
20ftx20ft (6mx6m) Shipping Container Dome Shelter w/ Semi-Permanent End-Wall
Couldn't load pickup availability
Supplied direct to you and incorporating a quick-mounting system, this shelter boasts a strong and easy-to-assemble frame and base plate setup. The pre-engineered arch frame sections interlock, bolt together and attach securely to shipping containers or post-sets and rails using custom clamps. The hot-dip galvanised steel base plates and rails are designed for easy installation and long-lasting durability (10-Year Warranty included).
Crafted from high-quality steel and PVC, this 20x20ft (6m wide x 6m long) dome shelter has been engineered to last. The combination of galvanised steel and commercial-grade UV-resistant PVC ensures years of reliable use. This cost-effective solution is easier and cheaper to build than traditional metal frame structures, making it the ideal choice for a wide range of uses across multiple industries.
We include a comprehensive setup guide and detailed installation manual with every purchase. This means you can easily follow the instructions, ensuring consistent quality and functionality. Plus, with our 10-Year Warranty, you’ll get the most out of your investment for years to come.
- Strong, durable, galvanised steel frame with the quick-mount system.
- No special tools required to build this shelter.
- 36M2 of undercover space, with 96 cubic metres of storage (container height only).
- Resistant to rain, mold, wind, and rips. The covers include fade blockers, anti-aging and anti-fungal agents.
- Roof cover allows natural light in while blocking harmful UV to create comfortable conditions underneath.
- A 4.6m ground to roof apex for extra tall vehicles and equipment (GP Containers or post set).
- 100% waterproof roof and end wall covers (1000×1000 denier polyester coated), fire retardant, 610GSM high-quality UV-treated PVC, inside and out.
- Roof and End Wall covers are SCE SGS TUV CSA certificated.
- Sealed end wall for additional protection from the weather.
- Front wall with pull-up door is also available.
- Easy to assemble, with comprehensive instruction manual included.
- Can be dismantled and moved without affecting the structural integrity of the frame or cover.
- Can be used with a single side post set and rail or double side post kits.
- Dome height above containers 2m.

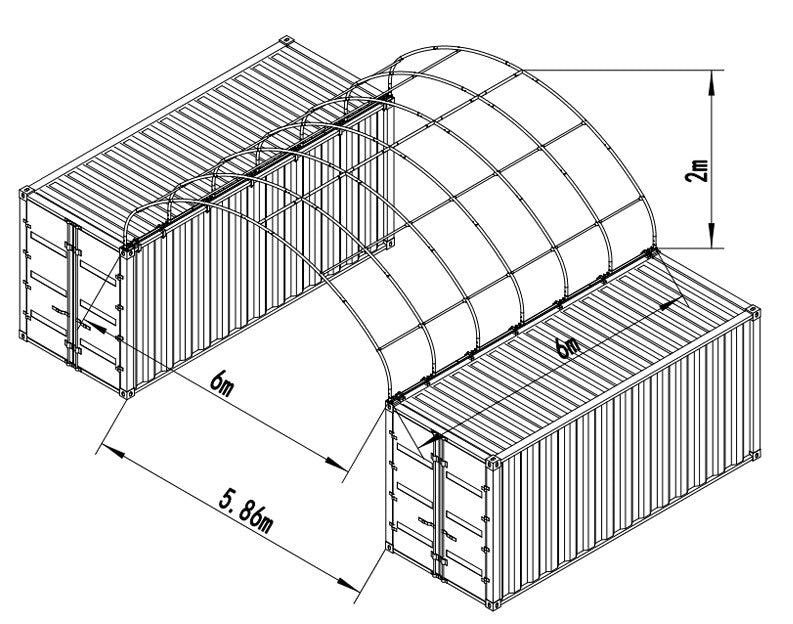

Dome Dimensions
2m dome apex | 4.6m full height (based on mounting the shelter on a General Purpose 2.6m high shipping container or 2.6m H post set).
| Dome Height (m) | Full Height (m) |
|---|---|
| 2 | 4.6 |
Back Wall Dimensions
| W (m) | H (m) |
|---|---|
| 6 | 4.6 |
Shelter Weight and Packing Crate Dimensions
| L (m) | W (m) | H (m) | KG |
|---|---|---|---|
| 1.93 | 0.7 | 0.4 | 330 |
Front Wall (with lockable pull-up door and winch)
Can be fitted with a 20ft steel frame front wall with fold-up door and mechanical winch, creating a sealed work or storage space.
Note: Images are for illustrative purposes. Your shelter dome kit may not contain the same pieces featured in the images, however, we do guarantee that the dome shelter will still function and be assembled as advertised.
